AuraX Cyr Wheel 2.0

AuraX Cyr Wheel 2.0

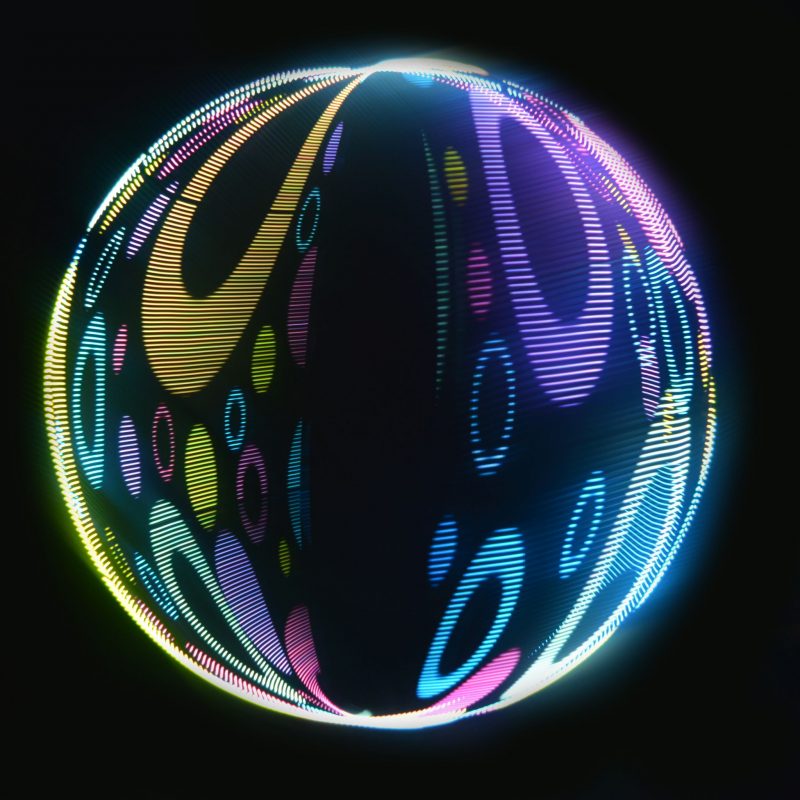

AuraX Cyr Wheel 2.0 is a fully programmable illuminated wheel for acrobats, performers and light shows. Its large circular form and two LED lines add a new dimension to your movement – from subtle colour transitions to bold patterns, flowing light trails and choreography timed to music.

The new AuraX2 system brings a dedicated controller, fast Wi-Fi control, saved custom programs, multi-device synchronization, live effects, LED FX audio-reactive mode via PC and convenient control from your phone, tablet or computer. With IgnisStudio, you can build a show with a visual style of your own.

📱 Wi-Fi control and the AuraX app

Built-in Wi-Fi lets you control the AuraX Cyr Wheel from a phone, tablet or computer. The web interface and AuraX app give you an overview of your device and quick access to programs, effects and light settings, without connecting a cable every time you want a different look.

Adjust colours, brightness, speed and effect settings to suit your venue and the atmosphere of your performance. Custom programs are stored directly on the device, so you can prepare your routine in advance and concentrate on movement during the show.

Multi-device synchronization brings the wheel together with other props in the AuraX range. Coordinated programs and shared colour transitions can turn a group performance into one coherent light show.

✨ Effects, colours and LED FX

You do not have to start with a blank project. AuraX2 offers 46 effects and 29 colour palettes for practice, improvisation and prepared routines. Custom colours, brightness and speed help you match the light to your costume, stage design or chosen track.

For a live response to music, use LED FX audio-reactive mode via PC. Light effects can react to audio from a connected computer and follow the energy of your show. For precisely timed choreography, create your own program in IgnisStudio instead.

🎛️ IgnisStudio – custom programs timed to music

IgnisStudio for Windows and macOS lets you build light programs on a visual timeline. Combine colour sequences, images and patterns, adjust the duration of individual sections and prepare changes for specific moments in your music.

Soft transitions can accompany slower passages, while dynamic patterns emphasize fast rotations and finishing moves. Light becomes a deliberate part of your choreography, rather than a randomly changing backdrop. As the wheel moves, its light trails give each sequence a distinct character.

Upload your finished programs directly to the wheel and use them repeatedly in rehearsals and on stage. The same creative environment supports the AuraX range, making it easier to prepare a coordinated show with several different props.

🔄 Firmware updates

AuraX2 supports firmware updates, allowing controls, effects and features to develop without replacing the entire prop. Guides, apps and available updates are linked below.

🔧 Construction

The wheel combines a duralumin frame, stainless-steel joints and a PVC covering. Its five-section construction makes transport and storage more manageable. Allen screws secure the joints, while locking connectors link the electrical components.

Two LED lines, each with 60 LEDs per metre, create a continuous lighting effect around the wheel. The total count depends on diameter: approximately 2 × 300–360 LEDs. Choose a diameter from 150 to 200 cm in 5 cm steps; contact us in advance to discuss other dimensions.

Batteries are distributed across the sections, with a combined capacity of approximately 18,000 mAh. Charging uses micro USB; runtime depends on brightness and the selected program. A finished wheel weighs approximately 12–14 kg, depending on its size.

To preserve the properties of the PVC covering, we recommend use at temperatures up to 25 °C / 77 °F and protection from direct sunlight. Assembly, charging and care details are provided in the guide.

⭐ Why choose AuraX Cyr Wheel 2.0?

Because light can be more than an accessory. AuraX Cyr Wheel connects your technique with the visual language of your performance, letting you change the atmosphere without changing your prop. Subtle and elegant in one routine, bold and dynamic in the next – the choice follows your style, music and the story you want to tell.

Custom programs, live effects and the shared AuraX system give you room for solo acts and larger light-show projects alike. The five-piece construction also considers life beyond the stage: travelling, carrying your equipment and preparing for the next performance.

✅ Features at a glance

• New AuraX controller with the AuraX2 system.
• 2 line configuration – two LED lines.
• Wi-Fi, web interface and AuraX app control.
• 46 effects, 29 palettes and custom colour combinations.
• Adjustable brightness, speed and effect settings.
• Custom programs created in IgnisStudio for Windows and macOS.
• Programs stored directly on the device.
• Synchronization with multiple AuraX devices.
• LED FX audio-reactive mode via PC.
• Firmware updates.
• Five-section construction for easier transport.
• Diameters from 150 to 200 cm in 5 cm steps.

Specifications

📥 Downloads and useful links

💻 IgnisStudio Windows 💻 IgnisStudio macOS 📱 AuraX Google Play 📱 AuraX App Store 📖 AuraX2 guide EN 🎵 LED FX 🔄 Firmware and updates 🖼️ IMAGES FOR IGNISSTUDIO

Show us your FLOW: @ignisshopcom

Made to order

Each AuraX Cyr Wheel is made to order, rather than held as finished stock. Production usually takes 3–4 weeks, followed by shipping. Please confirm your desired diameter, any individual adjustments and the completion date with us before ordering.

The statutory 14-day withdrawal right does not apply to goods genuinely made to the customer’s individual specifications or clearly personalized, where this exception applies under the relevant law. Manufacturing after an order or choosing a standard offered option does not automatically remove statutory withdrawal rights. Rights regarding faulty goods remain unaffected.
